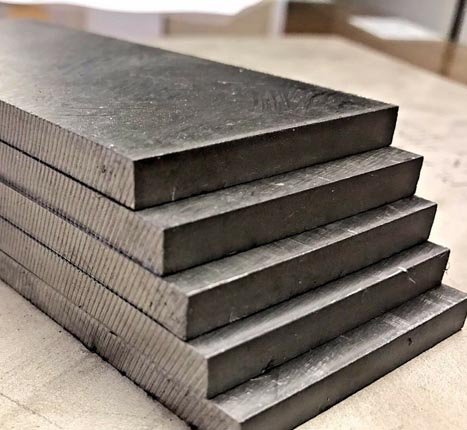

Titanium Plates Manufacturer, Supplier & Exporters in India

Nova Steel Corporation is one of the leading Titanium Plates Manufacturers, Supplier, and Dealer in India. We have manufactured these Titanium plates as per the national & international quality standards. We also offer a complete range of grades like Titanium GR I, GR -2, GR-3, GR-4, GR-5, GR-7 Plate as per the client’s requirements. Titanium Plates are being manufactured by using the finest grade of raw materials and cutting-edge techniques as per customer’s requirements, and are accessible to our valuable customers in a different range of diameters, wall thicknesses, and sizes at quite affordable rates.

Titanium Plate Size & Specifications

SHEET, PLATE & COIL
Sizes: Sheet & Plate.012 TO 4.00 X r/w X R/L Sizes: Coil .001 to .011 x R/W x R/L	GRADE	SPECIFICATIONS
	6AL-4V, 6AL-4V ELI	AMS-4911, 4907,4905, MIL-T-9046, ASTM-F136
		DMS-1592, GM-3103,12TM-B265
	6AL-2SN-4ZR-2MO	AMS,4919, MIL-T-9046, DMS-2275, AMS-T-9046
		GM-3104, B50TF21
	6AL-6V-2SN	AMS-4918, MIL-T-9046, DMS-1879, AMS-T-9046
	5AL-2.55N, 5-2.5 ELI	AMS-4909, 4910, MIL-T-9046, AMS-T-9046
	BAL-IMO-1V	AMS-4915, 4916, DMS-1784
	CP-GRADES 1,2,3,4	AMS-4900, 4902
		MIL-T-9046, AMS-T-9046, DMS-1536, ASTM-B265
	15V-3CR-3SN-3AL	AMS-4914

Get In Touch

Titanium Plate Dimensions

Plate Surface finish	Gauge (in)	Width (max in)
2B – Cold rolled, heat-treated, pickled, skin passed Plate	10–24	72*
2D – Cold rolled, heat-treated, pickled plate	12–24	60
BA Mexinox only	18–28	48
Polished plate (not brushed)	11–24	60
Temper rolled plate Mexinox only	13–29	48

Other Relevant Information of Titanium Plate for buyers

Titanium Plate, Sheet, and Strip	ASTM B 168/ASME SB 168, ASTM B 906/ASME SB 906, ASME Code Cases 1827 and N-253, SAE/AMS 5540, BS 3072NA14 and 3073NA14, DIN 17750, ISO 6208, EN 10095, MIL-DTL-23228.
Standard Titanium Plate & Sheet Sizes	1000 x 2000 mm, 1220 x 2440 mm, 1500 x 3000 mm, 2000 x 2000 mm, 2000 x 4000 mm Cold rolled Titanium Alloy Plate 0.5-6.4 mm Hot rolled Titanium Alloy Plate 3.0–10.0 mm
Titanium Steel Alloy Plate Hardness	Soft, Hard, Half Hard, Quarter Hard, Spring Hard Titanium Sheet suppliers
Availability of Titanium Foil sizes	Thickness: 8-100 microns (0.00031-0.004 in) Width: Up to 500 mm (19.5 in) Weight (in rolls) : Up to 50 kg (110 lb); e.g. approxi- mately 1400 m at 8 microns and ap- proximately 112 m at 100 microns.
Profiling	To provide a full profiling service in India we use numerous profiling methods including: Laser Plate Cutting Plasma Plate Cutting Oxy-propane Flame Cutting
Tolerances of width and thickness	EN 10258 (formerly DIN 59381) EN 10151 Titanium strip for springs EN 10088 Titanium strip (general)
standards and approvals	EN ISO 18286 EN 10051 EN 10088-1 ISO 15510 EN ISO 9445 ASTM A 480 ASTM A 959 ASME IID
Plasma profiles	As per the customer’s drawings
Value-added services	Laser cutting, Waterjet cutting, Plasma cutting, bending and mechanical processing, edge preparation, welding, sawing and shearing.
Value-added services for Titanium Coil	Cut-to-length Slitting Polishing Blanking
Origin	Indian Origin, European Origin, Japanese Origin
Packing of Titanium Alloy Sheet	Bundles with a waterproof cloth outside or plywood box
Test	UT, SGS testing, TUV, etc

Standard Specification of Titanium Plate for buyers

SHEET, PLATE & COIL
Sizes: Sheet & Plate.012 TO 4.00 X r/w X R/L Sizes: Coil .001 to .011 x R/W x R/L	GRADE	SPECIFICATIONS
6AL-4V, 6AL-4V ELI	AMS-4911, 4907,4905, MIL-T-9046, ASTM-F136
	DMS-1592, GM-3103,12TM-B265
6AL-2SN-4ZR-2MO	AMS,4919, MIL-T-9046, DMS-2275, AMS-T-9046
	GM-3104, B50TF21
6AL-6V-2SN	AMS-4918, MIL-T-9046, DMS-1879, AMS-T-9046
5AL-2.55N, 5-2.5 ELI	AMS-4909, 4910, MIL-T-9046, AMS-T-9046
BAL-IMO-1V	AMS-4915, 4916, DMS-1784
CP-GRADES 1,2,3,4	AMS-4900, 4902
	MIL-T-9046, AMS-T-9046, DMS-1536, ASTM-B265
15V-3CR-3SN-3AL	AMS-4914

AMS	Properties
4900L	Sheet, Strip, and Plate, C.P., Annealed, 55.0 KSI (379 MPa) Yield Strength
4901M	Sheet, Strip, and Plate, C.P. Annealed, 70.0 KSI (485MPa)
4902G	Sheet, Strip, and Plate, C.P. Annealed, 40.0 KSI (276 MPa) Yield Strength
4905B	Damage-Tolerant Grade Plate 6AL – 4V, Beta, Annealed
4907F	Sheet, Strip, and Plate 6AL-4V, Extra Low Interstitial Annealed
4908F	Sheet and Strip, 8Mn, Annealed, 110,000 psi (760 MPa) Yield Strength
4909F	Sheet, Strip, and Plate 5AL -2.5Sn, Extra Low Interstitial, Annealed
4910K	Sheet, Strip, and Plate 5AL – 2.5Sn Annealed
4911H	Sheet, Strip, and Plate, 6AL – 4V, Annealed
4914A	Cold Rolled Sheet and Strip, 15V – 3AL – 3Cr – 3Sn Solution Heat Treated
4915G	Sheet, Strip, and Plate, 8AL – 1V – 1Mo, Single Annealed
4916F	Sheet, Strip, and Plate, 8AL – 1Mo – 1V, Duplex Annealed
4917E	Sheet, Strip, and Plate, 13.5V – 11Cr – 3.0AL, Solution Heat Treated
4918H	Sheet, Strip, and Plate, 6AL – 6V- 2Sn Annealed
4919C	Sheet, Strip, and Plate, 6AL– 2Sn – 4Zr – 2M0 – 0.08Si, Duplex Annealed

Size Chart of Titanium Plate for buyers

Size (in inches)	Size (in mm)
.125″	3.18mm
.134″	3.40mm
.156″	3.96mm
.187″	4.75mm
.250″	6.35mm
.312″	7.92mm
.375″	9.53mm
.500″	12.7mm
.601″	15.9mm
.750″	19.1mm
.875″	22.2mm
1″	25.4mm
1.125″	28.6mm
1.250″	31.8mm
1.500″	38.1mm
1.750″	44.5mm
2″	50.8mm
2.500″	63.5mm
3″	76.2mm

Thickness Titanium Plate for buyers

Thickness	Grades
.016	CP1, A70, 75A, CP3, A40, 55A, 6AL-4V ANN
.020	CP1, A70, 75A, CP3, A40, 55A, 6AL-4V ANN
.025	CP1, A70, 75A, CP3, A40, 55A, 6AL-4V ANN
.032	CP1, A70, 75A, CP3, A40, 55A, 6AL-4V ANN
.040	CP1, A70, 75A, CP3, A40, 55A, 6AL-4V ANN
.050	CP1, A70, 75A, CP3, A40, 55A, 6AL-4V ANN
.063	CP1, A70, 75A, CP3, A40, 55A, 6AL-4V ANN
.071	CP1, A70, 75A, CP3, A40, 55A, 6AL-4V ANN
.080	CP1, A70, 75A, CP3, A40, 55A, 6AL-4V ANN
.090	CP1, A70, 75A, CP3, A40, 55A, 6AL-4V ANN
.100	CP1, A70, 75A, CP3, A40, 55A, 6AL-4V ANN
.125	CP1, A70, 75A, CP3, A40, 55A, 6AL-4V ANN

Weight Chart of Titanium Plate for buyers

Thickness	Plate Weight per Unit Area	Density
3/16 inches	0.06000 lbs/in²42.184176 kg/m²	0.315 lbs/in³8.72 g/cm³
1/4 inches	0.08 lbs/in²56.245568 kg/m²	0.315 lbs/in³8.72 g/cm³
3/8 inches	0.121 lbs/in²85.0714216 kg/m²	0.315 lbs/in³8.72 g/cm³
1/2 inches	0.161 lbs/in²113.1942056 kg/m²	0.315 lbs/in³8.72 g/cm³
5/8 inches	0.196 lbs/in²137.8016416 kg/m²	0.315 lbs/in³8.72 g/cm³
3/4 inches	0.235 lbs/in²165.221356 kg/m²	0.315 lbs/in³8.72 g/cm³
7/8 inches	0.274 lbs/in²192.6410704 kg/m²	0.315 lbs/in³8.72 g/cm³
1 inches	0.313 lbs/in²220.0607848 kg/m²	0.315 lbs/in³8.72 g/cm³
1 1/4 inches	0.391 lbs/in²274.9002136 kg/m²	0.315 lbs/in³8.72 g/cm³
1 1/2 inches	0.47 lbs/in²330.442712 kg/m²	0.315 lbs/in³8.72 g/cm³
1 3/4 inches	0.549 lbs/in²385.9852104 kg/m²	0.315 lbs/in³8.72 g/cm³
2 inches	0.627 lbs/in²440.8246392 kg/m²	0.315 lbs/in³8.72 g/cm³
2 1/4 inches	0.705 lbs/in²495.664068 kg/m²	0.315 lbs/in³8.72 g/cm³
2 1/2 inches	0.784 lbs/in²551.2065664 kg/m²	0.315 lbs/in³8.72 g/cm³
2 3/4 inches	0.862 lbs/in²606.0459952 kg/m²	0.315 lbs/in³8.72 g/cm³
3 inches	0.941 lbs/in²661.5884936 kg/m²	0.315 lbs/in³8.72 g/cm³

Titanium Plates Uses & Applications

Titanium Plates are widely used all over the world in different industries. Here are the top uses of Titanium Plates-

Transporting materials: such as hot water, chemicals, oil, gas, and sulfur in various industries.
Automotive industry: air and water flow systems, and piping systems.
Sewerage systems: industrial water lines and water mains. Heating, ventilating, and air-conditioning equipment.
Construction industries: structural applications and scaffolding.
Homes and buildings: supply and exhaust piping, water pipes, and curtain rods.

About Titanium Plates

An ISO Certified Company, Nova Steel Corporation is a leading stockholder, supplier, and exporter of Titanium Plate. Titanium Plates are cut to your specifications and supplied with a complete set of mill test reports. Custom length and width can be made available. We guarantee fast delivery of the Titanium Plate in the country. The main reason being we have excellent warehousing and storage facilities for both finished and semi-finished goods. They are made ready as per the urgent requirements of the customers.

Titanium Alloy Grades

ADDITIONAL INFORMATION OF TITANIUM PLATES

Pay Mode Terms: L/C (Letter of Credit), T/T (Bank Transfer), Other
Port of Dispatch: Mumbai OR KALAMBOLI India
Packaging Details: Titanium Plates are given marking, painted with black japan or black Board (Mat Finish) & will be packed in a bagging bag with stickers written with size, grade & quantity.

Manufacturer Supplier of Titanium Plates in India:

We, Nova Steel Corporation are Manufacturers of Titanium Plates in Mumbai, India. Our high-quality range of Titanium Plates is exclusively designed for chemical industries, steel factories, petrochemical industry, fire protection systems, shipping/shipment industries, etc. Titanium Plates are made with precision using the best quality raw material. We also customize Titanium Plates as per the customer’s requirements.
