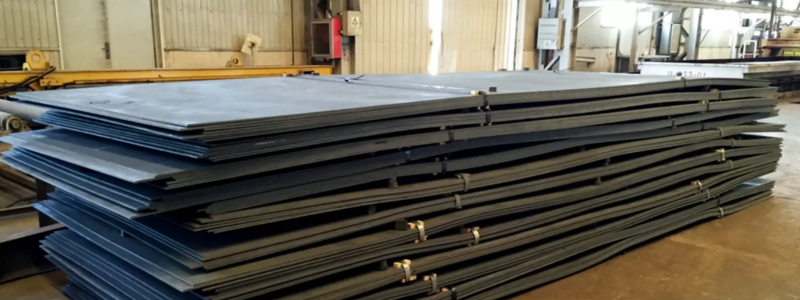

Alloy Steel Sheets / Spring Steel Sheets Manufacturers, Suppliers & Exporter in India

Nova Steel Corporation is the best leading Alloy Steel Sheets / Spring Steel Sheets manufacturers in Mumbai, India. This heat treatable alloy is known for its toughness and high strength in a heat-treated condition. Our high-quality range of Alloy Steel Sheets or Spring Steel Sheets is exclusively designed for steel factories, the petrochemical industry, fire protection systems, chemical industries, shipping/shipment industries, etc. We are leading manufacturers of Alloy Steel Sheets / Spring Steel Sheets. Our raw materials are specially selected with the latest tools and techniques to maintain the quality standard. We are having a unique team of experts and engineers for managing the flow of production to manufacture the best quality of these Carbon Steel Sheets & Plates. Our experts are supervising processes and maintain the quality of all Sheets and Plates.

Alloy Steel Sheets/Plates Specification:

Product Name	SA387 Alloy Steel Plate
Material	Iron, black/ carbon/ mild steel, alloy steel
Technique	Cold Rolled, Hot Rolled, Forged
Standard	ASTM A387 A516 A515 A537 A572 A283 A285 A299 A36 JIS G3101 G3115 G3103 G3106 G3126 G4109 DIN 17100 17155 SEW 689 SEW 680 etc
Material	NM450L, NM450A, NM600, NM400, NM400L, NM400A, NM500A, NM500, NM360L, NM360, NM550, NM450 NR360, NR400, MITTA 400F, MITTA 450F, MITTA 500F HARDOX 550, HARDOX 600, SB-40, SB-45, SB-50 Xar400, Xar450, Xar500, Xar550, Xar600 DILLIDUR400, DILLIDUR500, DILLIDUR400V, DILLIDUR500V, DILLIDUR450V QUARD400, QUARD450, QUARD500 JFE-EH360, JFE-EH400, JFE-EH450, JFE-EH500, JFE-EH550, WEL-HARD400, WEL-HARD500, SUMIHARD K340, SUMIHARD K340, SUMIHARD K400, SUMIHARD K450, SUMIHARD K500 B-HARD360, B-HARD400, B-HARD400 KN-55, KN-60, KN-63, FORA400, FORA500, CREUSABRO4800, CREUSABRO8000 RAEX400, RAEX450, RAEX500
Grade	A387 GR91 GR11 GR22 GR2, A515 GR50 GR55, A516 GR60 GR65 GR70 A283 GRC A285 GRC A36, A572 GR50 SS400 SS490 SS41 S235JR S335J2G S355JR ST37.2 ST42 ST52.3 15Mo3 13CrMo44 10CrMo910 etc
Surface	Galvanized, Mill, Painted, Anti-rust coated, Embossed or be required
Quality Control	MTC will be provided with the goods; Third-party inspections, such as SGS TUV BV or any third lab before shipment is acceptable
Application & Uses	Ship Building, Construction, Containers, Pressure Vessel Industry, etc
Boiler & Pressure Vessel Plate	Q245R, Q345R, Q370R, Q420R, 18MnMoNbR, 3MnNiMoR, 16MnDR, 15CrMoR, 14Cr1MoR, 12Cr2Mo1R, 12Cr1MoVR, 12Cr2Mo1VR, 09MnNiDR, 12MnNiVR, (S)A203 (A, B, D, E, F) (S) A204M (A, B, C) (S) A285M (A, B, C), (S) A516Gr. (60, 65, 70), SA516M Gr.485 (S)A387M Gr. (5, 11, 12, 22, 91) (S)A515M Gr (60, 65, 70), (S)A537M (Cl1, Cl2), (S) A302M (Gr.A, B, C, D) (S) A662 Gr. (A, B, C); (S) A533M (I, II), (S) A737 Gr. (B, C) A738 Gr. (A, B, C); P235GH, P265GH, P295GH, P355GH 13CrMo4-5, 10CrMo9-10, 11CrMo9-10 P275 (NH, NL1, NL2) P355 (N.NH, NL1, NL2) P60 (NH, NL1, NL2)
Bridge plate	Q235 (Qc, D, E ), Q345 (Qc, D, E ), Q370 (Qc, D, E ), Q420 (Qc, D, E ), Q460 (Qc, D, E ), Q500 (QD, E ), Q550 (QD, E ), Q620 (QD, E ), Q690 (QD, E ), A709-50T-1/50T-2/50T-3/50F-1/50F-2/50F-3, A 709-50W-A/B/C-F1/F2/F3 -T1/T2/T3
Checker Plate	Q235B, SS400, A36, S235JR, SA283 Gr.A/B/C
Weather-resistant plate	NM300, NM360, NM400, NM450, NM500, NM550, NM600.WNM320, WNM360, WNM400, WNM450, WNM500, WNM550, WNM600, WRZ400
Corrosion-resistant steel plate	Q235NH (A, B, C, D, E), Q295NH (A, B, C, D, E), Q355 NH (A, B, C, D, E), Q415 NH (A, B, C, D, E), Q460 NH (A, B, C, D, E), Q500 NH (A, B, C, D, E), Q550NH (A, B, C, D, E), S235 (JOW, J2W), S355 (JOW, J2W, K2W), A588M Gr (A.B, K) Cor-tenB, 08Cu, 09Cu, B480GNQR, 09CuPCrNi-A, 09CrCuSb, SPA-H
Marine engineering equipment and ship’s steel plates	CCS/ ABS /LR (A, B, D, E) A131 Gr. (A, B, D, E, CS) A131 Gr (AH32, DH32, EH32, FH32); A131 Gr (AH36, DH36, EH36, FH36) A131 Gr (AH40, DH40, EH40, FH40) A514M Gr. (F, Q, H) A517M Gr (B/F) (42, 50), (50, 60) (50, 60); Gr Q, A514 Gr Q, A514 Gr Q Moified, A517 Gr Q Moified.
Alloy Steel Plate Packing	Standard export package with alloy steel strip, loaded into container with wooden, or as required. The inner size of container is below: 20ft GP: 5.8m (length) x 2.13m (width) x 2.18m (high) about 24-26CBM, 23MTS 40ft GP: 11.8m (length) x 2.13m (width) x 2.18m (high) about 54CBM, 27MTS 40ft HG: 11.8m (length) x 2.13m (width) x 2.72m (high) about 68CBM, 27MTS

About Alloy Steel Sheets / Spring Steel Sheets

Nova Steel is the best manufacturers of Alloy Steel Sheets / Spring Steel Sheets are designed and developed by (International Quality Standards). AISI 4340 has a favourable response to heat treatment usually oil quenching followed by tempering and exhibits a good combination of ductility and strength when treated thusly. Uses include piston pins, bearings, ordnance, gears, dies, and pressure vessels. Our Alloy Steel Sheets & Spring Steel Sheets are made with precision using the best quality raw materials. We also offer customized Alloy Steel Sheets / Spring Steel Sheets as per the customer’s requirement Satisfaction. We, also have different sizes, grades & standards. Nova Steel also has Alloy Steel Sheets / Spring Steel Sheets materials with the best quality.

Alloy Steel Sheets / Spring Steel Sheets Supplier

Alloy Steel Sheets / Spring Steel Sheets

ASTM A387 Alloy Steel Sheets Chemical Composition:

	C	Mn	P	S	SI	Cr	Mo
Grade 5	0.15 max	0.3 – 0.6	0.035	0.03	0.5 max	4.00 – 6.00	0.45 – 0.65
Grade 9	0.15 max	0.30 – 0.6	0.03	0.03	1.0 max	8.0 – 10.0	0.9 – 1.1
Grade 11	0.05 – 0.17	0.4 – 0.65	0.035	0.035	0.5 – 0.80	1.0 – 1.5	0.45 – 0.65
Grade 12	0.05 – 0.17	0.4 – 0.65	0.035	0.035	0.15 – 0.4	0.8 – 1.15	0.45 – 0.6
Grade 22	0.05 – 0.15	0.3 – 0.6	0.035	0.035	0.5 max	2.0 – 2.5	0.9 – 1.1

Equivalent Grades
Internal Standard	BS	DIN	IS	EN	SAE/AISI
EN18	530A40	37Cr4	40Cr1	EN18	5140
EN24	817M40	34CrNiMo6	40NiCr4Mo3	EN24	4340
EN19C	709M40	–	40Cr4Mo3	EN19C	41,404,142
EN19	709M40	42Cr4Mo2	40Cr4Mo3	EN19	41,404,142
EN18D	530A40	37Cr4	40Cr1	EN18D	5140
EN18C	530A40	37Cr4	40Cr1	EN18C	5140
EN353	815M17	–	15NiCr1Mo12	EN353	–
EN18A	530A40	37Cr4	40Cr1	EN18A	5140
EN354	820M17	–	15NIVCr1Mo15	EN354	4320
27C15	–	28Mn6	27C15	–	1527
20MnCr5	–	20MnCr5	20MnCr1	–	–
20Mn2	150M28	–	20Mn2	EN14A	1524
16MnCr5	–	16MnCr5	17Mn1Cr95	–	5120
15Cr3	523A14	15Cr3	15Cr65	EN206	5015
FILESTEEL	–	–	–	–	–
EN18B	530A40	37Cr4	40Cr1	EN18B	5140
SCM420	708M20	–	–	–	–
SAE8620	805M20	–	20NiCrMo2	EN362	SAE8620

Technical Specifications of Alloy Steel Sheet:

Specification	Chemical Max	Mechanical MPA, min
	C Max	Min Max	Si Max	S Max	P Max	Cr Max	Mo Max	Ni Max	Cu Max	Tensile	Yield	% EL	Bend
												50 GL	50 GL
ASTM A 387
Gr 11 – CI 2	0.17	0.40 0.65	0.50 0.80	0.04	0.035	1.0 1.50	0.45 0.65	—	—	515 690	310	22	18	—
Gr 12 – Cl 2	0.17	0.40 0.65	0.15 0.40	0.04	0.035	0.80 1.15	0.45 0.60	—	—	450 585	275	22	19	—
EN-19	0.35 0.45%	0.50 0.80%	0.10 0.35%	—	0.20 0.40%	0.90 1.50%	— 0.05	—	—	— —	—	—	—	—
Gr 5 – Cl 2	0.15	0.30 0.60	0.50	0.035	0.035	4.0 6.0	0.45 0.65	—	—	515 690	310	18	—	—
Gr 22 – Cl 2	0.15	0.30 0.60	0.50	0.035	0.035	2.0 2.5	0.90 1.10	—	—	515 690	310	18	—	—
ASTM A 204 Gr-B	0.20	0.90	0.15 0.40	0.04	0.035	—	0.45 0.60	—	—	485 620	275	21	17	2T
16 Mo3	0.12 0.20	0.40 0.90	0.35	0.025	0.030	0.30	0.25 0.35	0.30	—	440 590	275	24	—	Impact : +20C / 3

Alloy Steel Plate Thickness Chart of Alloy Steel Plates:

Item Dimension thickness is in inches
0.025″ PLATE	4″ PLATE	0.75″ PLATE
0.032″ PLATE	3.5″ PLATE	0.875″ PLATE
0.036″ PLATE	0.109″ PLATE	1″ PLATE
0.04″ PLATE	0.125″ PLATE	1.125″ PLATE
0.05″ PLATE	0.16″ PLATE	1.25″ PLATE
0.063″ PLATE	0.19″ PLATE	1.5″ PLATE
0.071″ PLATE	0.25″ PLATE	1.75″ PLATE
0.08″ PLATE	0.3125″ PLATE	2″ PLATE
0.09″ PLATE	0.375″ PLATE	2.5″ PLATE
0.095″ PLATE	0.5″ PLATE	3″ PLATE
0.1″ PLATE	0.625″ PLATE

Other Related Products:

Clients Project of Alloy Steel Sheet

Alloy Steel Sheets are used in various parts of India. Our company is a name that people trust, our brand name implies fast delivery, affordable prices, and superior quality of Alloy Steel Sheet. We have supplied Alloy Steel Sheet in various cities and in different industries in India. We are therefore known as one of the top-rated Alloy Steel Sheet Suppliers in India.

Product supplied	City
Alloy Steel Sheet for Oil and gas industry	Bareilly, Uttar Pradesh
Alloy Steel Sheet supplied to Pharmaceutical processing industry	Mumbai, Maharashtra
Alloy Steel Sheet supply for Piping	Panaji, Goa
Alloy Steel Sheet supplied to industry	Raipur, Chhattisgarh

Alloy Steel Sheets / Spring Steel Sheets Uses & Applications

Alloy Steel Sheets / Spring Steel Sheets is widely used all over the world in different industries. Here are the top uses of Alloy Steel Sheets / Spring Steel Sheets –

Transporting materials: such as hot water, chemicals, oil, gas, and sulfur in various industries.
Automotive industry: air and water flow systems, and piping systems.
Sewerage systems: industrial water lines and water mains. Heating, ventilating and air-conditioning equipment.
Construction industries: structural applications and scaffolding.
Homes and buildings: supply and exhaust piping, water pipes and curtain rods.

ADDITIONAL INFORMATION:

Pay Mode Terms: L/C (Letter of Credit), T/T (Bank Transfer), Other
Port of Dispatch: Mumbai OR KALAMBOLI India
Packaging Details: Alloy Steel Sheets are given marking, painted with black japan or black Board (Mat Finish) & will be packed in a bagging bag with stickers written with size, grade & quantity.

Manufacturer Supplier of Alloy Steel Sheets / Spring Steel Sheets in India:

We, Nova Steel Corporation are Manufacturers of Alloy Steel Sheets / Spring Steel Sheets in Mumbai, Pune, Vadodara, Rajkot, Delhi, Surat, Vapi, Hyderabad, Ahmedabad, Gujarat, Coimbatore, Chennai, Indore, Nagpur, Lucknow, Gwalior, Bareilly, Vijayawada, and other major cities in India. We are India’s leading Manufacturer and Supplier of Alloy Steel Sheets / Spring Steel Sheets. We have our sales offices in different cities in India. Our head office is located in Mumbai and we supply to all major cities of India from Mumbai.
