AISI 304 Stainless Steel Plate Manufacturer, Supplier & Stockist in Mumbai, India.

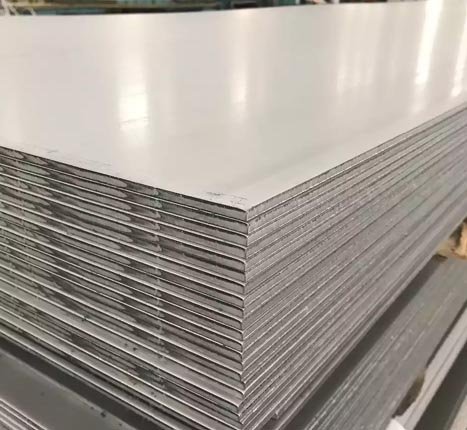

Nova Steel Corporation is one of the leading AISI 304 Plates Manufacturer, Supplier, and Dealer in India. AISI 304 Plate is vital to the aerospace industry and important in transportation and structures, such as building facades and window frames. AISI 304 Plates are being manufactured by using the finest grade of raw materials and cutting-edge techniques as per customer’s requirements, and are accessible to our valuable customers in a different range of diameters, wall thicknesses, and sizes at quite affordable rates.

Stainless Steel 304 Plates Standards & Specification

Specifications	ASTM A240, ASME SA240
Standard	JIS, ASTM, AISI, GB, EN, DIN
Surface	2B, BA, HL, No. 4, Mirror etc.
Finish	Cold rolled, Hot rolled
Thickness	0.3mm–100mm
Size	1000mm, 1219mm, 1250mm, 1500mm, 1524mm, 2000mm

SS 304 Plates Chemical Composition

Grade	C	Mn	Si	P	S	Cr	Mo	Ni	N
SS 304	0.08 max	2 max	0.75 max	0.045 max	0.030 max	18 – 20	–	8 – 11	–
SS 304L	0.035 max	2 max	1.0 max	0.045 max	0.03 max	18 – 20	–	8 – 13	–

SS 304 Plates Mechanical Properties

Grade/Temper

Tensile Strength

ksi (min.)

Yield Strength 0.2%

ksi (min.)

Elongation -% in 50 mm (min.)

Density

Melting Point

Tensile Strength

Yield Strength (0.2%Offset)

Elongation

8.0 g/cm3

1400 °C (2550 °F)

Psi – 75000 , MPa – 515

Psi – 30000 , MPa – 205

35 %

Weight Per Foot Chart of SS 304 Plates

Thickness	Plate Weight per Unit Area	Density
3/16 inches	0.06000 lbs/in²42.184176 kg/m²	0.315 lbs/in³8.72 g/cm³
1/4 inches	0.08 lbs/in²56.245568 kg/m²	0.315 lbs/in³8.72 g/cm³
3/8 inches	0.121 lbs/in²85.0714216 kg/m²	0.315 lbs/in³8.72 g/cm³
1/2 inches	0.161 lbs/in²113.1942056 kg/m²	0.315 lbs/in³8.72 g/cm³
5/8 inches	0.196 lbs/in²137.8016416 kg/m²	0.315 lbs/in³8.72 g/cm³
3/4 inches	0.235 lbs/in²165.221356 kg/m²	0.315 lbs/in³8.72 g/cm³
7/8 inches	0.274 lbs/in²192.6410704 kg/m²	0.315 lbs/in³8.72 g/cm³
1 inches	0.313 lbs/in²220.0607848 kg/m²	0.315 lbs/in³8.72 g/cm³
1 1/4 inches	0.391 lbs/in²274.9002136 kg/m²	0.315 lbs/in³8.72 g/cm³
1 1/2 inches	0.47 lbs/in²330.442712 kg/m²	0.315 lbs/in³8.72 g/cm³
1 3/4 inches	0.549 lbs/in²385.9852104 kg/m²	0.315 lbs/in³8.72 g/cm³
2 inches	0.627 lbs/in²440.8246392 kg/m²	0.315 lbs/in³8.72 g/cm³
2 1/4 inches	0.705 lbs/in²495.664068 kg/m²	0.315 lbs/in³8.72 g/cm³
2 1/2 inches	0.784 lbs/in²551.2065664 kg/m²	0.315 lbs/in³8.72 g/cm³
2 3/4 inches	0.862 lbs/in²606.0459952 kg/m²	0.315 lbs/in³8.72 g/cm³
3 inches	0.941 lbs/in²661.5884936 kg/m²	0.315 lbs/in³8.72 g/cm³

Sizes of SS 304 Plates

SS 304 Plate Thickness	SS 304 Plate Size	SS 304 Sheet Weight per Unit Area	Estimated Weight per Sheet
0.015 inches 0.381 mm	36 x 96	0.630 lbs/ft²3.07566 kg/m²	15.12 lbs6.84936 kg
0.015 inches 0.381 mm	36 x 120	0.630 lbs/ft²3.07566 kg/m²	18.90 lbs8.5617 kg
0.0178 inches 0.45212 mm	36 x 96	0.756 lbs/ft²3.690792 kg/m²	18.15 lbs8.22195 kg
0.0178 inches 0.45212 mm	36 x 120	0.756 lbs/ft²3.690792 kg/m²	22.68 lbs10.27404 kg
0.0178 inches 0.45212 mm	48 x 96	0.756 lbs/ft²3.690792 kg/m²	24.19 lbs10.95807 kg
0.0178 inches 0.45212 mm	48 x 120	0.756 lbs/ft²3.690792 kg/m²	30.24 lbs13.69872 kg
0.0235 inches 0.5969 mm	30 x 96	1.008 lbs/ft²4.921056 kg/m²	20.16 lbs9.13248 kg
0.0235 inches 0.5969 mm	30 x 120	1.008 lbs/ft²4.921056 kg/m²	25.20 lbs11.4156 kg
0.0235 inches 0.5969 mm	36 x 96	1.008 lbs/ft²4.921056 kg/m²	24.19 lbs10.95807 kg
0.0235 inches 0.5969 mm	36 x 120	1.008 lbs/ft²4.921056 kg/m²	30.24 lbs13.69872 kg
0.0235 inches 0.5969 mm	36 x 144	1.008 lbs/ft²4.921056 kg/m²	36.29 lbs16.43937 kg
0.0235 inches 0.5969 mm	48 x 96	1.008 lbs/ft²4.921056 kg/m²	32.26 lbs14.61378 kg
0.0235 inches 0.5969 mm	48 x 120	1.008 lbs/ft²4.921056 kg/m²	40.32 lbs18.26496 kg
0.0235 inches 0.5969 mm	48 x 144	1.008 lbs/ft²4.921056 kg/m²	48.39 lbs21.92067 kg
0.0291 inches 0.73914 mm	30 x 96	1.260 lbs/ft²6.15132 kg/m²	25.20 lbs11.4156 kg
0.0291 inches 0.73914 mm	30 x 120	1.260 lbs/ft²6.15132 kg/m²	31.50 lbs14.2695 kg
0.0291 inches 0.73914 mm	36 x 96	1.260 lbs/ft²6.15132 kg/m²	30.24 lbs13.69872 kg
0.0291 inches 0.73914 mm	36 x 120	1.260 lbs/ft²6.15132 kg/m²	37.80 lbs17.1234 kg
0.0291 inches 0.73914 mm	36 x 144	1.260 lbs/ft²6.15132 kg/m²	45.37 lbs20.55261 kg
0.0291 inches 0.73914 mm	48 x 96	1.260 lbs/ft²6.15132 kg/m²	40.32 lbs18.26496 kg
0.0291 inches 0.73914 mm	48 x 120	1.260 lbs/ft²6.15132 kg/m²	50.41 lbs22.83573 kg
0.0291 inches 0.73914 mm	48 x 144	1.260 lbs/ft²6.15132 kg/m²	60.49 lbs27.40197 kg
0.0355 inches 0.9017 mm	30 x 96	1.512 lbs/ft²7.381584 kg/m²	30.24 lbs13.69872 kg
0.0355 inches 0.9017 mm	30 x 120	1.512 lbs/ft²7.381584 kg/m²	37.80 lbs17.1234 kg
0.0355 inches 0.9017 mm	36 x 96	1.512 lbs/ft²7.381584 kg/m²	36.29 lbs16.43937 kg

Dimensions Schedule of SS 304 Plates

Plate Surface finish	Thickness (mm)	Width (max mm)
2B – Cold rolled, heat-treated, pickled, skin passed Sheet	0.25–8.0	2032
2D – Cold rolled, heat-treated, pickled Sheet	0.4–6.35	1524
2E – Cold rolled, heat-treated, mechanically descaled plate	0.4–8.0	2032
2R – Cold rolled, bright annealed plate	0.25–3.5	1524
2H – Work hardened plate	0.4–6.35	1524
Polished, brushed plate	0.5–4.0	1524

ASTM A240 SS 304 Plate Imperial Dimensions

Plate Surface finish	Gauge (in)	Width (max in)
2B – Cold rolled, heat-treated, pickled, skin passed Plate	10–24	72*
2D – Cold rolled, heat-treated, pickled plate	12–24	60
BA Mexinox only	18–28	48
Polished Sheet (not brushed)	11–24	60
Temper rolled Sheet Mexinox only	13–29	48

Get In Touch

AISI 304 Plates Uses & Applications

AISI 304 Plates are widely used all over the world in different industries. Here are the top uses of AISI 304 Plates
–

Transporting materials: such as hot water, chemicals, oil, gas, and sulfur in various industries.
Automotive industry: air and water flow systems, and piping systems.
Sewerage systems: industrial water lines and water mains. Heating, ventilating and air-conditioning equipment.
Construction industries: structural applications and scaffolding.
Homes and buildings: supply and exhaust piping, water pipes and curtain rods.

About AISI 304 Plates

AISI 304 Plates surface roughness. AISI 304 Plates are nonmagnetic and do not easily ignite. The AISI 304 Plates
is an alloy that is often noted for its use in the aerospace industry. Due to its excellent properties, the AISI 304 Plates
are used in applications that have requirements for superior mechanical properties such as high tensile strength as well as hardness.

Stainless Steel Grades

ADDITIONAL INFORMATION OF ALUMINIUM AISI 304 PLATES:

Pay Mode Terms: L/C (Letter of Credit), T/T (Bank Transfer), Other
Port of Dispatch: Mumbai OR KALAMBOLI India
Packaging Details: AISI 304 Plates are given marking, painted with black japan or black Board (Mat Finish) & will be packed in a bagging bag with stickers written with size, grade & quantity.
