7075-T76511 Manufacturer, Supplier & Dealer in India

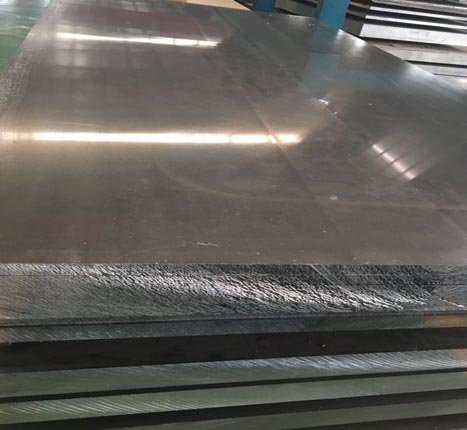

Nova Steel Corporation is one of the leading 7075 T6 Sheets & Coils Manufacturer, Supplier, and Dealer in India. 7075 T6 Sheets & Coils is one of the most versatile grades of heat treatable aluminium alloys. Aluminium 7075-T651 Plates Sheets & Coils are being manufactured by using the finest grade of raw materials and cutting-edge techniques as per customer’s requirements, and are accessible to our valuable customers in a different range of diameters, wall thicknesses, and sizes at quite affordable rates. 7075-T7351 Sheets & Coils is one of the most adaptable and popular aluminium alloys.

7075 ALUMINIUM ALLOY PLATES SHEETS COILS Grades & Specification

Properties	Description
Grade	Aluminium Alloy 7075
Width Range	900-1500 mm
Standard Trimmed	915, 1220, 1400 and 1500 mm
Standard Untrimmed	1270, 1540 mm
Thickness	1/2″ – 6″ for 7xxx(stretched)
Weight	Depends on dimensions
Temper	O, H1, H2, H3, H4, T4, T6
Finish	Depends on dimensions (Mill Finish)

CHEMICAL COMPOSITION OF 7075 ALUMINIUM ALLOY PLATES SHEETS COILS EXPORTERS SUPPLIERS

Grade	Element
	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti
7075	0.40	0.50	1.2/2.0	0.30	2.1/2.9	0.18/0.28	5.1/6.1	0.20

PHYSICAL PROPERTIES OF 7075 ALUMINIUM ALLOY PLATES SHEETS COILS EXPORTERS SUPPLIERS

Properties	Metric
Density	2.80 Mg/m³
Melting point	532°C – 635 °C
Specific Heat (212 °F / 100°C	960 J/kg-°K

MECHANICAL PROPERTIES OF 7075 ALUMINIUM ALLOY PLATES SHEETS COILS EXPORTERS SUPPLIERS

Temper	Tensile					Hardness
	Ultimate		Yield		Elongation	Brinell
	KSI	MPA	KSI	MPA	%
T6, T651	83	572	73	503	11	150
T73, T7351	73	503	63	434	13	N/A

DIMENSIONS CHART OF 7075 ALUMINIUM ALLOY PLATES SHEETS COILS EXPORTERS SUPPLIERS

Metric	density (g/cm³)	x	T	x	W	x	L	=	weight
Example	2.80g/cm³	x	0.80mm	x	1.25m	x	2.5m	=	7.00 kg

Imperial	density (lbs/in³)	x	T	x	W	x	L	=	weight
Example	0.101 lbs/in³	x	0.063in	x	48in	x	144in	=	43.98 lbs

Thickness in Millimetre	Size in Meter	Weight in Kilogram/sheet
0.30	2.5 x 1.25	2.63
0.40	2.5 x 1.25	3.50
0.50	2.5 x 1.25	4.38
0.60	2.5 x 1.25	5.25
0.80	2.5 x 1.25	7.00
1.00	2.5 x 1.25	8.75
1.20	2.5 x 1.25	10.50
1.27	2.5 x 1.25	11.11
1.60	2.5 x 1.25	14.00
2.00	2.5 x 1.25	17.50
2.50	2.5 x 1.25	21.88
3.00	2.5 x 1.25	26.25
4.00	2.5 x 1.25	35.00
5.00	2.5 x 1.25	43.75
6.00	2.5 x 1.25	52.50
6.35	2.5 x 1.25	55.56

Thickness	Size	Weight
in	ft	lbs/sheet
0.012	12 x 4	8.38
0.016	12 x 4	11.19
0.018	12 x 4	12.57
0.020	12 x 4	13.96
0.025	12 x 4	17.45
0.032	12 x 4	22.34
0.040	12 x 4	27.92
0.050	12 x 4	34.91
0.063	12 x 4	43.98
0.070	12 x 4	48.87
0.080	12 x 4	55.85
0.090	12 x 4	62.83
0.100	12 x 4	69.81
0.125	12 x 4	87.26
0.188	12 x 4	131.25
0.250	12 x 4	174.53

TOLERANCE OF 7075 ALUMINIUM ALLOY PLATES SHEETS COILS EXPORTERS SUPPLIERS

Thickness mm	Tolerance (+/-)mm	Tolerance (+/-)mm	Tolerance (+/-)mm
	Group I 1000mm wide	Group I 1250mm wide	Group I 1500mm wide
0.2 to 0.4	0.02	0.04	0.05
0.41 to0.50	0.03	0.04	0.05
0.51 to 0.60	0.03	0.05	0.06
0.61 to 0.80	0.03	0.06	0.07
0.81 to 1.0	0.04	0.06	0.08
1.1 to 1.2	0.04	0.07	0.09
1.21 to 1.50	0.05	0.09	0.10
1.51 to 1.80	0.06	0.10	0.11
1.81 to 2.0	0.06	0.11	0.12
2.1 to 2.5	0.07	0.12	0.13
2.6 to 3.0	0.08	0.13	0.15
3.1 to 3.5	0.10	0.15	0.17

Gauge Chart OF 7075 ALUMINIUM ALLOY PLATES SHEETS COILS EXPORTERS SUPPLIERS

SWG	INCH	MM	SWG	INCH	MM
7/0	0.500	12.70	23	0.024	0.61
6/0	0.464	11.79	24	0.022	0.56
5/0	0.432	10.97	25	0.020	0.51
4/0	0.400	10.16	26	0.018	0.46
3/0	0.372	9.45	27	0.016	0.42
2/0	0.348	8.84	28	0.015	0.38
1/0	0.324	8.24	29	0.014	0.35
1	0.300	7.62	30	0.012	0.32
2	0.276	7.01	31	0.012	0.30
3	0.252	6.40	32	0.011	0.27
4	0.232	5.89	33	0.010	0.25
5	0.212	5.39	34	0.009	0.23
6	0.192	4.88	35	0.008	0.21
7	0.176	4.47	36	0.008	0.19
8	0.160	4.06	37	0.007	0.17
9	0.144	3.66	38	0.006	0.15
10	0.128	3.25	39	0.005	0.13
11	0.116	2.95	40	0.005	0.12
12	0.104	2.64	41	0.004	0.11
13	0.092	2.34	42	0.004	0.10
14	0.080	2.03	43	0.004	0.09
15	0.072	1.83	44	0.003	0.08
16	0.064	1.63	45	0.003	0.07
17	0.056	1.42	46	0.002	0.06
18	0.048	1.22	47	0.002	0.05
19	0.040	1.02	48	0.002	0.04
20	0.036	0.91	49	0.001	0.03
21	0.032	0.81	50	0.001	0.03
22	0.028	0.71

7075 T6 Sheets & Coils Uses & Applications

7075 T6 Sheets & Coils are widely used all over the world in different industries. Here are the top uses of 7075 T6 Sheets & Coils-

Transporting materials: such as hot water, chemicals, oil, gas, and sulfur in various industries.
Automotive industry: air and water flow systems, and piping systems.
Sewerage systems: industrial water lines and water mains. Heating, ventilating and air-conditioning equipment.
Construction industries: structural applications and scaffolding.
Homes and buildings: supply and exhaust piping, water pipes and curtain rods.

Get In Touch

About 7075 T6 Sheets & Coils

7075 T6 Sheets & Coilsis a relatively soft, durable, lightweight, ductile, and malleable metal with an appearance ranging from silvery to dull grey, depending on the surface roughness. Due to its excellent properties, the 7075 T6 Sheets & Coils are used in applications that have requirements for superior mechanical properties such as high tensile strength as well as hardness. 7075 T6 Sheets & Coils nonmagnetic and does not easily ignite. The 7075 T6 Sheets & Coils is an aluminium-based alloy that is often noted for its use in the aerospace industry.

Aluminium Alloy Grades

ADDITIONAL INFORMATION OF ALUMINIUM 7075 T6 SHEETS & COILS:

Pay Mode Terms: L/C (Letter of Credit), T/T (Bank Transfer), Other
Port of Dispatch: Mumbai OR KALAMBOLI India
Packaging Details: 7075 T6 Sheets & Coils are given marking, painted with black japan or black Board (Mat Finish) & will be packed in a bagging bag with stickers written with size, grade & quantity.

Manufacturer Supplier of 7075 T6 Sheets & Coils in India:

We, Nova Steel Corporation are Manufacturers of 7075 T6 Sheets & Coils in Mumbai, India. Our high-quality range of 7075 T6 Sheets & Coils is exclusively designed for chemical industries, steel factories, petrochemical industry, fire protection systems, shipping/shipment industries, etc. 7075 T6 Sheets & Coils are made with precision using the best quality raw material. We also customize 7075 T6 Sheets & Coils as per the customer’s requirements.
