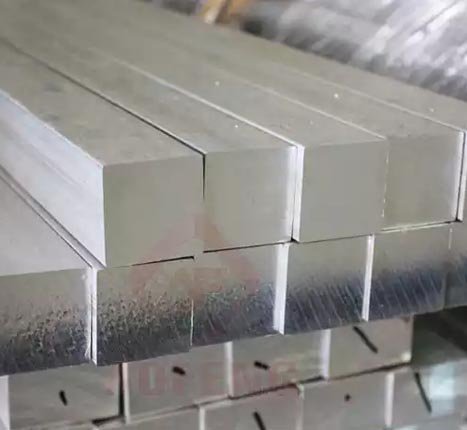

6061 T6511 Square Bars Manufacturer, Supplier & Dealer in India
Nova Steel Corporation is one of the leading 6061 T6511 Square Bars Manufacturer, Supplier, and Dealer in India. All the Square bar is made with the best quality of the raw material and international standards & grade. All the bar is well examined and tested before the delivery to the vendors and clients. We even produce the customized form of the bar as per the customer’s direction and instruction. 6061 Aluminum Square Bar, is an extruded solid aluminium bar that is quite versatile, easy to work with, and has a wide range of applications
Standards : ASTM B221, B211, B565, B316, AMS 4121 2014
Temper: T3, T4, T5, T6, T651, T6511
Standard: ASTM, ASME, AMS, GB/T, JIS
Length: 1000-6000
Size: 5 mm To 500 mm
Diameter: 6-500
Finish: Bright, Polish & Black
Type : Hot-Rolled (HR) / Cold-Rolled (CR) Sheet
Get In Touch
| STANDARD | UNS | WERKSTOFF NR. | European Standard | BS(OLD) | ISO | USA (AA) |
| Aluminium 6061 | A96061 | 3.3211 | AW-AlMg1SiCu/EN AW-6061 | HE20 | AlMg1SiCu | AA6061 |
| Aluminium 6061 | Fe | Si | Mg | Mn | Cu | Zn | Ti | Al |
| 0.70 | 0.40 – 0.80 | 0.80 – 1.20 | 0.15 | 0.15 – 0.40 | 0.25 | 0.15 | 97.9 |
| Temper | Tensile Strength | Yield Strength | Elongation |
|---|---|---|---|
| KSI | KSI | % | |
| T451 | 35 | 21 | 25 |
| T651 | 45 | 40 | 17 |
Size Chart of Aluminum 6061 Square Bars
| Size in Inches | Approx. Weight per Foot in Lbs. | Est. Weight 12′ Bar |
|---|---|---|
| 1/4 | .0758 | .9096 |
| 3/8 | .1704 | 2.045 |
| 1/2 | .2940 | 3.528 |
| 3/4 | .6615 | 7.938 |
| 1 | 1.176 | 14.11 |
| 1 – 1/4 | 1.838 | 22.06 |
| 1 – 1/2 | 2.646 | 31.75 |
| 2 | 4.704 | 56.45 |
| 2 – 1/2 | 7.350 | 88.20 |
| 3 | 10.58 | 127.0 |
| 4 | 18.80 | 225.60 |
Dimension Chart of Aluminum 6061 Square Bars
| Dimension Name | Value |
| Alloy | 6061 |
| Temper | t6511 |
| Production Method | extruded |
| Height | 0.25 |
| Max Length | 144 |
| MTR Availability | Yes |
| Full Length | true |
| Material | aluminum |
| Shape | bar-square |
| Custom Cut Warehouse | 1 |
Chemistry Information of Aluminum 6061 Square Bars
Element |
Percentage |
| Cr | 0.04 – 0.35 |
| Al | 98 |
| Cu | 0.15 – 0.4 |
| Fe | 0.7 max |
| Mg | 0.8 – 1.2 |
| Mn | 0.15 max |
| Si | 0.4 – 0.8 |
| Ti | 0.15 max |
| Zn | 0.25 max |
Aluminium Alloy 6061 T6511 Square Bars Popular Searches
aluminium alloy 6061 square bar supplier in India, aluminium alloy 6061 square bar and square bar exporter in mumbai, aluminium alloy 6061 mirror square bar, aluminium alloy 6061 polished square bar, aluminium alloy 6061 decorative square bar, aluminium alloy 6061 astm b221 square bar, aluminium alloy 6061 extrusions square bar, aluminium alloy 6061 embossed square bar, aa 6061 patterned square bar, al 6061 square bar, 6061 aluminum square bars dealer in india, aluminium alloy 6061 square bar square bar stockholders, aluminium alloy 6061 square bar size, aluminium alloy 6061 roofing square bar, aluminium 6061 square bars, aluminium alloy 6061 square bar price list india, 6061 aluminum expanded square bar, al alloy 6061 square bars, aluminium 6061 hot rolled square bar, 6061 aluminium square bars distributors, aluminium alloy 6061 cold rolled square bar, 6061 aluminium square bar equivalent grades
6061 T6511 Sqaure Bars Uses & Applications
6061 T6511 Square Bars are widely used all over the world in different industries. Here are the top uses of 6061 T6511 Square Bars-
- Transporting materials: such as hot water, chemicals, oil, gas, and sulfur in various industries.
- Automotive industry: air and water flow systems, and piping systems.
- Sewerage systems: industrial water lines and water mains. Heating, ventilating and air-conditioning equipment.
- Construction industries: structural applications and scaffolding.
- Homes and buildings: supply and exhaust piping, water pipes and curtain rods.
About 6061 T6511 Square Bars
There are many properties which the Aluminium Alloy 6061 Square Bar is having. However, some of the properties which the square bars are having are corrosion resistance, pitting corrosion resistance, and crevice corrosion resistance. These properties are inherited in the square bars because of the chromium contents which are there in the aluminium alloy. There are many different testing performs on these square bars to ensure the quality of the bars. Testing like hardness test, chemical testing, mechanical test, pitting resistance test, and many others is done on the square bars.
Aluminium Alloy Grades
- 2014 T6 Aluminium Round Bars Manufacturer
- 2024 T3 Aluminium Round Bars Manufacturer
- 2024 T3 Aluminium Sheets & Coils Manufacturer
- 2024 T351 Aluminium Plates Manufacturer
- 2024 T351 Aluminium Round Bars Manufacturer
- 2024 Aluminium Tubes Manufacturer
- 2124 T851 Aluminium Plates Manufacturer
- 6061 T4 Aluminium Sheets & Coils Manufacturer
- 6061 T6 Aluminium Round Bars Manufacturer
- 6061 T6 Aluminium Sheets & Coils Manufacturer
- 6061 T651 Aluminium Plates Manufacturer
- 6061 T651 Aluminium Round Bars Manufacturer
- 6061 T6511 Aluminium Flat Bar Manufacturer
- 6061 T6511 Aluminium Hexagon Bars Manufacturer
- 7075 T76 AluminiumSheets & Coils Manufacturer
- 7475 T7351 Aluminium Plates Manufacturer
- 7075 T7351 Aluminium Round Bars (Cold Finish) Manufacturer
- 7075 T7351 Aluminium Plates Manufacturer
- 6061 T6511 Aluminium Hollow Bars Manufacturer
- 6061 T6511 Aluminium Round Bars Manufacturer
- 6061 T6511 Aluminium Square Bars Manufacturer
- 6061 T652 Aluminium Plates Manufacturer
- 7050 T7451 Aluminium Plates Manufacturer
- 7075 73511 Aluminium Round Bars (Extruded) Manufacturer
- 7075 T651 Aluminium Round Bars (Extruded) Manufacturer
- 7075 T6 Aluminium Round Bars (Cold Finish) Manufacturer
- 7075 T6 Aluminium Sheets & Coils Manufacturer
- 7075 T6 Aluminium Round Bars (Extruded) Manufacturer
- 7075 T651 Aluminium Plates Manufacturer
- 7075 T651 Aluminium Flat Bars (Cold Finish) Manufacturer
- 7075 T651 Aluminium Round Bars (Cold Finish) Manufacturer
ADDITIONAL INFORMATION OF ALUMINIUM 6061 T6511 SQUARE BAR:
Pay Mode Terms: L/C (Letter of Credit), T/T (Bank Transfer), Other
Port of Dispatch: Mumbai OR KALAMBOLI India
Packaging Details: 6061 T6511 Square Bars are given marking, painted with black japan or black Board (Mat Finish) & will be packed in a bagging bag with stickers written with size, grade & quantity.
Manufacturer Supplier of 6061 T6511 Square Bars in India:
We, Nova Steel Corporation are Manufacturers of 6061 T6511 Square Bars in Mumbai, India. Our high-quality range of 6061 T6511 Square Bars is exclusively designed for chemical industries, steel factories, petrochemical industry, fire protection systems, shipping/shipment industries, etc. 6061 T6511 Square Bars are made with precision using the best quality raw material. We also customize 6061 T6511 Square Bars as per the customer’s requirements.
