6061 T6511 Square Bars Manufacturer, Supplier & Dealer in India

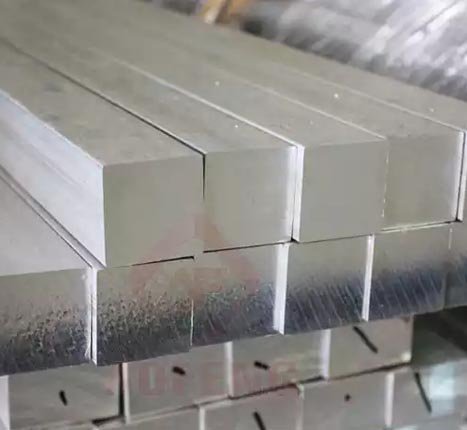

Nova Steel Corporation is one of the leading 6061 T6511 Square Bars Manufacturer, Supplier, and Dealer in India. All the Square bar is made with the best quality of the raw material and international standards & grade. All the bar is well examined and tested before the delivery to the vendors and clients. We even produce the customized form of the bar as per the customer’s direction and instruction. 6061 Aluminum Square Bar, is an extruded solid aluminium bar that is quite versatile, easy to work with, and has a wide range of applications

Aluminium 6061 Square Bars Size, Standards & Specification

Standards : ASTM B221, B211, B565, B316, AMS 4121 2014

Temper: T3, T4, T5, T6, T651, T6511

Standard: ASTM, ASME, AMS, GB/T, JIS

Length: 1000-6000

Size: 5 mm To 500 mm

Diameter: 6-500

Finish: Bright, Polish & Black

Type : Hot-Rolled (HR) / Cold-Rolled (CR) Sheet

Get In Touch

Aluminium 6061 Square Bars Equivalent Grades

STANDARD	UNS	WERKSTOFF NR.	European Standard	BS(OLD)	ISO	USA (AA)
Aluminium 6061	A96061	3.3211	AW-AlMg1SiCu/EN AW-6061	HE20	AlMg1SiCu	AA6061

Aluminium 6061 Square Bars Chemical Composition

Aluminium 6061	Fe	Si	Mg	Mn	Cu	Zn	Ti	Al
Aluminium 6061	0.70	0.40 – 0.80	0.80 – 1.20	0.15	0.15 – 0.40	0.25	0.15	97.9

Mechanical Properties of Aluminum 6061 Square Bars

Temper	Tensile Strength	Yield Strength	Elongation
	KSI	KSI	%
T451	35	21	25
T651	45	40	17

Size Chart of Aluminum 6061 Square Bars

Size in Inches	Approx. Weight per Foot in Lbs.	Est. Weight 12′ Bar
1/4	.0758	.9096
3/8	.1704	2.045
1/2	.2940	3.528
3/4	.6615	7.938
1	1.176	14.11
1 – 1/4	1.838	22.06
1 – 1/2	2.646	31.75
2	4.704	56.45
2 – 1/2	7.350	88.20
3	10.58	127.0
4	18.80	225.60

Dimension Chart of Aluminum 6061 Square Bars

Dimension Name	Value
Alloy	6061
Temper	t6511
Production Method	extruded
Height	0.25
Max Length	144
MTR Availability	Yes
Full Length	true
Material	aluminum
Shape	bar-square
Custom Cut Warehouse	1

Chemistry Information of Aluminum 6061 Square Bars

Element	Percentage

Cr	0.04 – 0.35
Al	98
Cu	0.15 – 0.4
Fe	0.7 max
Mg	0.8 – 1.2
Mn	0.15 max
Si	0.4 – 0.8
Ti	0.15 max
Zn	0.25 max

Aluminium Alloy 6061 T6511 Square Bars Popular Searches

aluminium alloy 6061 square bar supplier in India, aluminium alloy 6061 square bar and square bar exporter in mumbai, aluminium alloy 6061 mirror square bar, aluminium alloy 6061 polished square bar, aluminium alloy 6061 decorative square bar, aluminium alloy 6061 astm b221 square bar, aluminium alloy 6061 extrusions square bar, aluminium alloy 6061 embossed square bar, aa 6061 patterned square bar, al 6061 square bar, 6061 aluminum square bars dealer in india, aluminium alloy 6061 square bar square bar stockholders, aluminium alloy 6061 square bar size, aluminium alloy 6061 roofing square bar, aluminium 6061 square bars, aluminium alloy 6061 square bar price list india, 6061 aluminum expanded square bar, al alloy 6061 square bars, aluminium 6061 hot rolled square bar, 6061 aluminium square bars distributors, aluminium alloy 6061 cold rolled square bar, 6061 aluminium square bar equivalent grades

6061 T6511 Sqaure Bars Uses & Applications

6061 T6511 Square Bars are widely used all over the world in different industries. Here are the top uses of 6061 T6511 Square Bars-

Transporting materials: such as hot water, chemicals, oil, gas, and sulfur in various industries.
Automotive industry: air and water flow systems, and piping systems.
Sewerage systems: industrial water lines and water mains. Heating, ventilating and air-conditioning equipment.
Construction industries: structural applications and scaffolding.
Homes and buildings: supply and exhaust piping, water pipes and curtain rods.

About 6061 T6511 Square Bars

There are many properties which the Aluminium Alloy 6061 Square Bar is having. However, some of the properties which the square bars are having are corrosion resistance, pitting corrosion resistance, and crevice corrosion resistance. These properties are inherited in the square bars because of the chromium contents which are there in the aluminium alloy. There are many different testing performs on these square bars to ensure the quality of the bars. Testing like hardness test, chemical testing, mechanical test, pitting resistance test, and many others is done on the square bars.

Aluminium Alloy Grades

ADDITIONAL INFORMATION OF ALUMINIUM 6061 T6511 SQUARE BAR:

Pay Mode Terms: L/C (Letter of Credit), T/T (Bank Transfer), Other
Port of Dispatch: Mumbai OR KALAMBOLI India
Packaging Details: 6061 T6511 Square Bars are given marking, painted with black japan or black Board (Mat Finish) & will be packed in a bagging bag with stickers written with size, grade & quantity.

Manufacturer Supplier of 6061 T6511 Square Bars in India:

We, Nova Steel Corporation are Manufacturers of 6061 T6511 Square Bars in Mumbai, India. Our high-quality range of 6061 T6511 Square Bars is exclusively designed for chemical industries, steel factories, petrochemical industry, fire protection systems, shipping/shipment industries, etc. 6061 T6511 Square Bars are made with precision using the best quality raw material. We also customize 6061 T6511 Square Bars as per the customer’s requirements.
